纤维加强PVC塑筋缠绕管 FSD 应用：广泛用于农业灌溉、泵、工程排水、工业配套及水泥泵车吸排水。结构：双层PVC，中间涤纶纤...
使用范围：可广泛应用于多种领域,如用来传输:食品、化妆品、保健品,药品。如:葡萄酒、醋、酒精浓度高达96%的白酒...

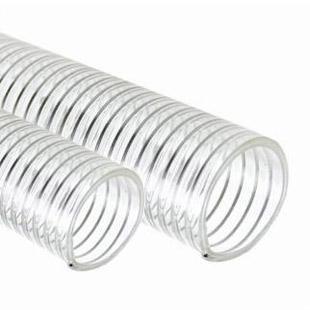

食品级PVC钢丝软管 FPSD
使用范围：液体食品、果汁、一般水性食品的排吸。适用于酒精度不大于20%液体的输送。
特性：采用BIO-VINYL环保型PVC原料，带螺旋钢丝加强。完全不添加邻苯二甲酸或其他合成增塑剂。
颜色：透明
温度：-10℃～+ 60℃
认证：FDA, EU10/2011
APPLICATIONS: ideal solution for suction and delivery of food liquids, beverages, fruit juices, wine and liquors with up to 20% alcohol concentration.
Features: flexible hose produced with Biovinyl™ and reinforced with steel spiral. Completely free of phthalates. Resistant to several chemicals and to weather conditions.
Colour: transparent with steel spiral
Temperature range: -10℃ + 60℃
Standards: FDA, EU10/2011
|
编码 |
内径 |
外径 |
弯曲半径 |
工作压力 |
爆破压力 |
真空度 |
重量 |
每卷长度 |
|
|
inch |
mm |
mm |
mm |
bar |
bar |
bar |
kg/m |
m |
|
|
FPSD006 |
1/4" |
6 |
12.2 |
30 |
5 |
25 |
0.92 |
0.13 |
60 |
|
FPSD008 |
5/16" |
8 |
14.2 |
40 |
5 |
25 |
0.92 |
0.16 |
60 |
|
FPSD010 |
3/8" |
10 |
16 |
50 |
7 |
35 |
0.82 |
0.19 |
60 |
|
FPSD012 |
12 |
18 |
50 |
7 |
35 |
0.82 |
0.21 |
60 |
|
|
FPSD013 |
1/2" |
13 |
19 |
60 |
7 |
35 |
0.82 |
0.22 |
60 |
|
FPSD014 |
14 |
20 |
60 |
7 |
35 |
0.82 |
0.23 |
60 |
|
|
FPSD016 |
5/8" |
16 |
22.4 |
70 |
7 |
35 |
0.82 |
0.28 |
60 |
|
FPSD018 |
18 |
24.4 |
80 |
6 |
30 |
0.82 |
0.30 |
60 |
|
|
FPSD020 |
3/4" |
20 |
27 |
90 |
6 |
30 |
0.82 |
0.36 |
60 |
|
FPSD022 |
7/8" |
22 |
29 |
100 |
6 |
30 |
0.82 |
0.39 |
60 |
|
FPSD025 |
1" |
25 |
33 |
110 |
6 |
30 |
0.82 |
0.51 |
60 |
|
FPSD030 |
30 |
38 |
140 |
5 |
25 |
0.82 |
0.60 |
60 |
|
|
FPSD032 |
1-1/4" |
32 |
40.4 |
140 |
5 |
25 |
0.82 |
0.67 |
60 |
|
FPSD035 |
35 |
43.4 |
160 |
5 |
25 |
0.82 |
0.71 |
60 |
|
|
FPSD038 |
1-1/2" |
38 |
47 |
170 |
5 |
25 |
0.82 |
0.81 |
30 |
|
FPSD040 |
40 |
49.2 |
180 |
5 |
25 |
0.82 |
0.88 |
30 |
|
|
FPSD045 |
1-3/4" |
45 |
54.8 |
200 |
4 |
20 |
0.77 |
1.14 |
30 |
|
FPSD050 |
50 |
60 |
230 |
4 |
20 |
0.77 |
1.28 |
30 |
|
|
FPSD051 |
2" |
50.8 |
60.8 |
230 |
4 |
20 |
0.77 |
1.30 |
30 |
|
FPSD060 |
60 |
71.8 |
270 |
3.5 |
17.5 |
0.77 |
1.75 |
30 |
|
|
FPSD063 |
2-1/2" |
63 |
74.8 |
280 |
3.5 |
17.5 |
0.77 |
1.83 |
30 |
|
FPSD070 |
70 |
82 |
320 |
3.5 |
17.5 |
0.68 |
2.07 |
30 |
|
|
FPSD076 |
3" |
76 |
88.2 |
340 |
3.5 |
17.5 |
0.68 |
2.28 |
30 |
|
FPSD080 |
80 |
92.2 |
360 |
3.5 |
17.5 |
0.68 |
2.40 |
20 |
|
|
FPSD090 |
3-1/2" |
90 |
103 |
410 |
3 |
15 |
0.68 |
3.03 |
20 |
|
FPSD102 |
4" |
102 |
115 |
460 |
2 |
10 |
0.68 |
3.49 |
20 |
|
FPSD105 |
105 |
118 |
470 |
2 |
10 |
0.68 |
3.60 |
20 |
|
|
FPSD110 |
110 |
127.4 |
550 |
1.6 |
8 |
0.87 |
4.77 |
20 |
|
|
FPSD120 |
120 |
137.4 |
600 |
1.2 |
6 |
0.87 |
5.17 |
20 |
|
|
FPSD127 |
5" |
127 |
144.4 |
640 |
1.2 |
6 |
0.87 |
5.47 |
20 |
|
FPSD151 |
6" |
151 |
169.6 |
760 |
1.2 |
6 |
0.87 |
6.86 |
20 |
