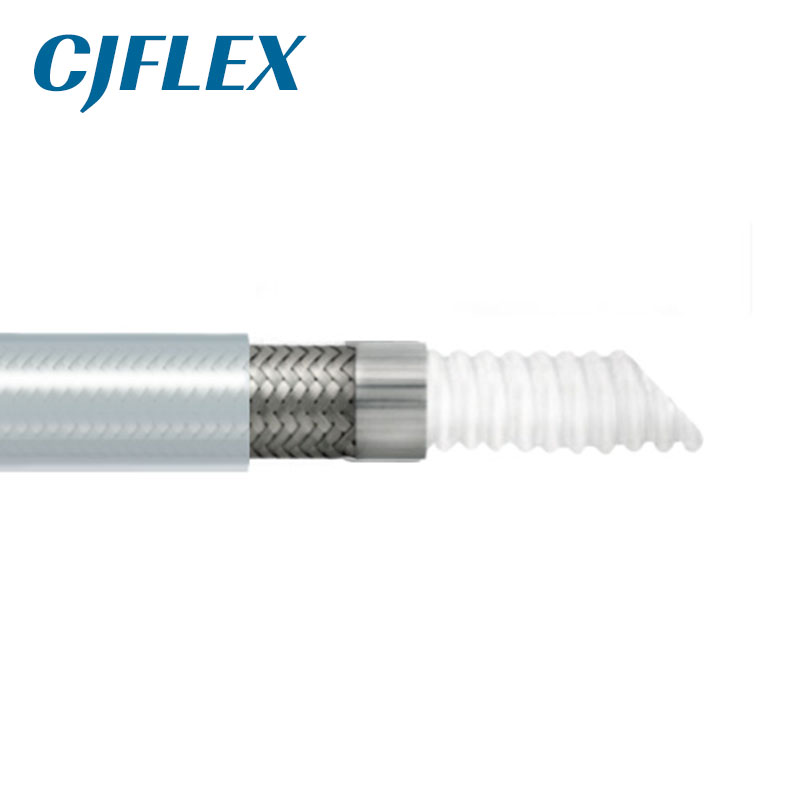

CJFLEX TCSSI 硅胶包覆不锈钢丝编织波纹特氟龙管
Construction: Type TCSSI is manufactured from convoluted PTFE tube with stainless steel over braid and transparent silicone cover.
Temp. Range: -70°C and 260°C.
Applications: For transporting corrosive chemicals, hot air, hot oil, steam and so on. Not recommended for steam-cold water cycling.
Virgin and anti-static liners are available.
This hose has the advantage of superb flexibility, zero friction, high pressure and a wide temperature range and is suitable for CIP and SIP cleaning.
Certification: FDA
结构：内管为波纹状的PTFE软管，外覆不锈钢丝编织和透明硅胶层
温度范围：-70℃至+260℃
应用场合：输送强腐蚀性化学品，热空气，热油，蒸汽等。不宜用在蒸汽冷水循环。当长期输送蒸汽时，为了避免爆裂，软管外胶需采用特殊针刺工艺，详情请与我们联系。
可根据客户要求，定制成黑色抗静电内管
可根据客户要求，硅胶层也可定制成白色或彩色
具有柔韧性高、表面光滑易擦洗、零摩擦、耐高压和耐温广的优势，可进行CIP和SIP清洗
符合FDA认证
| 编码 | 内径 | 最小外径 | 内管壁厚 | 弯曲半径 | 工作压力 | 爆破压力 | |
| in. | mm | mm | mm | mm | bar | bar | |
| TCSSI010 | 3/8" | 9.5 | 18.1 | 0.75 | 25 | 110 | 440 |
| TCSSI013 | 1/2" | 12.7 | 21.1 | 0.75 | 35 | 100 | 400 |
| TCSSI016 | 5/8" | 15.9 | 26.9 | 0.75 | 65 | 85 | 340 |
| TCSSI019 | 3/4" | 19 | 30.4 | 0.90 | 65 | 80 | 320 |
| TCSSI025 | 1" | 25.4 | 38.4 | 1.00 | 75 | 60 | 240 |
| TCSSI032 | 1-1/4" | 32 | 50.1 | 1.00 | 100 | 45 | 180 |
| TCSSI038 | 1-1/2" | 38 | 55.4 | 1.00 | 140 | 35 | 140 |
| TCSSI051 | 2" | 50.8 | 68.9 | 1.10 | 180 | 25 | 100 |
