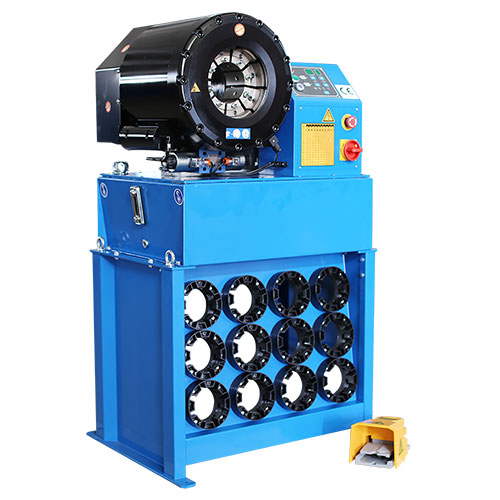

液压扣压机 CM51D
优点：
-数字精密控制
-快换模具架
-节能与安全运行
-TUV CE认证
| Main Specification | CM51D |
| Max Hydraulic Hose | 3" 4SP |
| Industrail Hose | 4” |
| Crimping Range mm | 4-140 |
| Die Type | P32 |
| Master Die Length mm | 100 |
| Max Opening mm | +40 |
| Motor KW | 4 |
| Crimping Force KN | 3800 |
| Crimpings Per Hour | 900 |
| Control | Digital Control |
| Foot pedal | Included |
| Die Rack | Included |
| Quick Change Tool | Included |
| Backstop Device | Optional |
| Control by Pressure | Optional |
| Noise Level dBA | 65 |
| Protection Class | IP56 |
| L*W*H mm | 760*650*1520 |
| Weight KG | 450 |
Standard Die Sets Included:
| Die No. | 10* | 12* | 14 | 16 | 19 | 22 | 26 | 30 | 34 | 39 | 45 | 51 | 57 | 63 | 69 | 74* | 78* |
| Length | 60 | 60 | 60 | 60 | 60 | 75 | 75 | 75 | 80 | 80 | 90 | 90 | 100 | 100 | 100 | 110 | 110 |
